100% Compatible with Singapore Telcos 4G Band : Singtel, Starhub, M1
100% Compatible with Windows 11
4G LTE SMS IOT Gateway
Do you need to send SMS alerts from your power meter, water pump, fridge, UPS, or any other device when there is an incident, failure, or downtime? Fort Digital’s 4G LTE SMS Gateway has all the solutions you need.
Advance Scripting
Fort Digital can further customize and program advanced scripting logic based on your specific operational requirements. For example, in a real live case study, once a gas detector sends a signal to the terminal, the system first sends an SMS alert to Group 1. If none of the recipients replies “OK” within 120 seconds, the system automatically escalates the alert by sending an SMS to Group 2, and if there is still no acknowledgment after another 120 seconds, the alert is finally sent to Group 3, ensuring proper escalation and accountability.
Alert to 3 Groups of Mobile Numbers
Fort Digital customizes the firmware to enable automatic alert notifications to 3 different groups when triggered by your equipment, such as gas detectors, UPS systems, refrigerators, pumps, and others.
Once triggered, the system will first send an SMS alert to Group 1. If there is no “OK” reply within 30 seconds, it will automatically escalate and send a second SMS to Group 2. If there is still no reply after another 30 seconds, the alert will then be sent to Group 3.
The moment any recipient replies with “OK,” the escalation process stops immediately and no further messages will be sent to the remaining groups. This ensures that someone acknowledges the alert in all scenarios and that every critical event receives timely attention.
Self Update Mobile Numbers via SMS
You can now update the Groups’ Mobile Numbers without needing to call us. All changes can be done directly via SMS command.
To change mobile number:
groupX,pin,mobile_numbers
Example: group1,1234,+6593365219 +6581515000
Explanation:
group1 = The group name you want to modify (group1, group2, or group3)
1234 = Security PIN. If the PIN is incorrect, the change will not be applied. The PIN can also be changed via SMS.
+6593365219 +6581515000 = The mobile number(s) to set, separated by a space
After sending this SMS, if the PIN is correct, the system will update the database and automatically reply with the latest values.
Other SMS commands:
To change PIN:
pin,old_pin,new_pin
Example: pin,1234,4567
To change the waiting time between Group1, Group2, and Group3 alert SMS:
wait,pin,waiting_time_in_seconds
Example: wait,1234,60
With this new firmware, you no longer need to contact us for manual changes. You can manage and update everything yourself, saving both time and cost.
Fort Digital SMS 4G Modem Kit (8 in 1) 100% Singapore Telcos Compatible (RS232 Serial / USB / RS 485 / RS422 / STM485 / DB9)
Whether you use it to receive SMS alerts from your UPS, water pump, server, water meter, fridge, or countless other appliances, it delivers reliable and robust connectivity 24/7, all year round.
100% Compatible with Singapore Telcos 4G Band :
Band 3 (1800 MHz), Band 7 (2600 MHz), Band 8 (900 MHz), Band 40 (2300 MHz), Band 1 (2100 MHz), Band 28 (700 MHz). Compatible Telcos: Singtel, M1, Starhub, Zero1, CM Link, Gomo, MyRepublic, Circle Life, Giga, RedOne, Heya. Not Compatible: TPG/Simba. Compatible Machines or Software: All that support AT commands. Network Support:
LTE (4G): FDD LTE: B1, B3, B7, B8, B20, B28A, TDD LTE: B38, B40, B41, UMTS (3G): B1, B8, GSM (2G): 900, 1800 MHz
One Kit Set Consist of: 1 4G Modem to host sim card, 1 4G Antenna, 1 Safety Mark Power Adaptor (12V), 1 RS232 Serial to USB (with driver) Cable, 1 RS232 Serial to RS485/ RS422 Adaptor, 1 Serial Male to Male Converter, 1 Serial Female to Female Converter, 1 Female to Female Serial Cable Extension. Modem Size: Width ±5cm x Height ±8cm x Depth ±1.5cm (smaller than credit card size), Antenna Size: ±11cm, Weight : ±200gr
100% Return / Exchange Policy + 1 Year Warranty:
We understand the concern about purchasing a product that may not be compatible with your machine, which is why we offer a 3-day, 100% return and refund policy for your peace of mind. If you’d like to try a different model, you can also exchange it for one of our other options.
Test Singtel & M1 Network
Here is a video demonstrating our hardware’s compatibility with Singtel and M1 networks using AT Command.
Varities of Models
We have many different models designed for different use cases and applications, as there is no single device that suits all requirements. Please contact us to consult with our team, and we will advise you on the most suitable solution for your specific needs.
Gas/Water Detectors, Refrigerators, UPS, etc

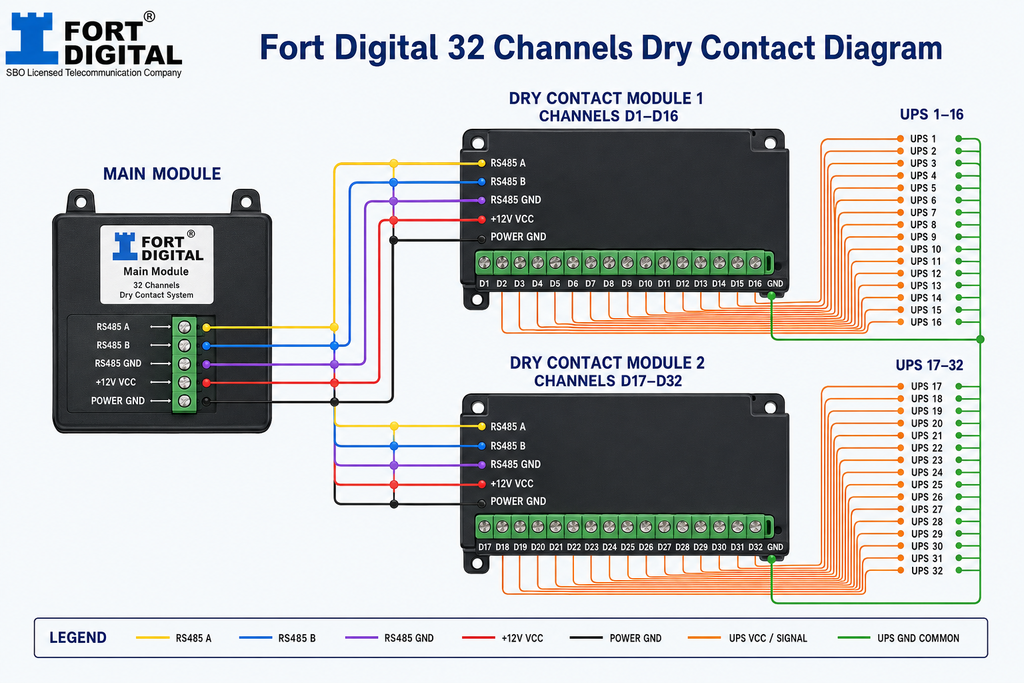

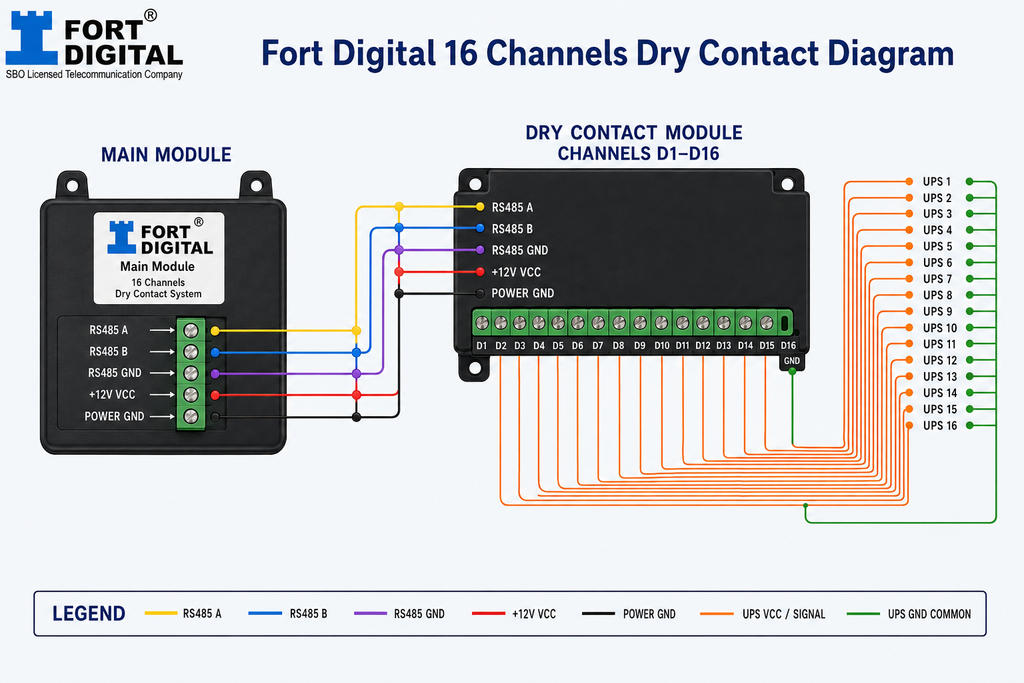

Fort Digital Terminal can be connected to various devices such as gas detectors, water leakage detectors, refrigerators, UPS systems, water pumps, and any other equipment that provides dry contact or 5V–30V relay output. When an event occurs and the contact or relay is triggered, the terminal will immediately detect the signal and automatically send out SMS alerts to the predefined mobile numbers.
Preset Mobile Numbers –
No Server – 100% Standalone
All mobile numbers are pre-configured directly inside the Fort Digital Terminal itself, without the need for any local server, cloud platform, or additional external devices. This standalone design ensures higher reliability, faster response time, and continued operation even when other systems or networks are unavailable, also less failpoint.

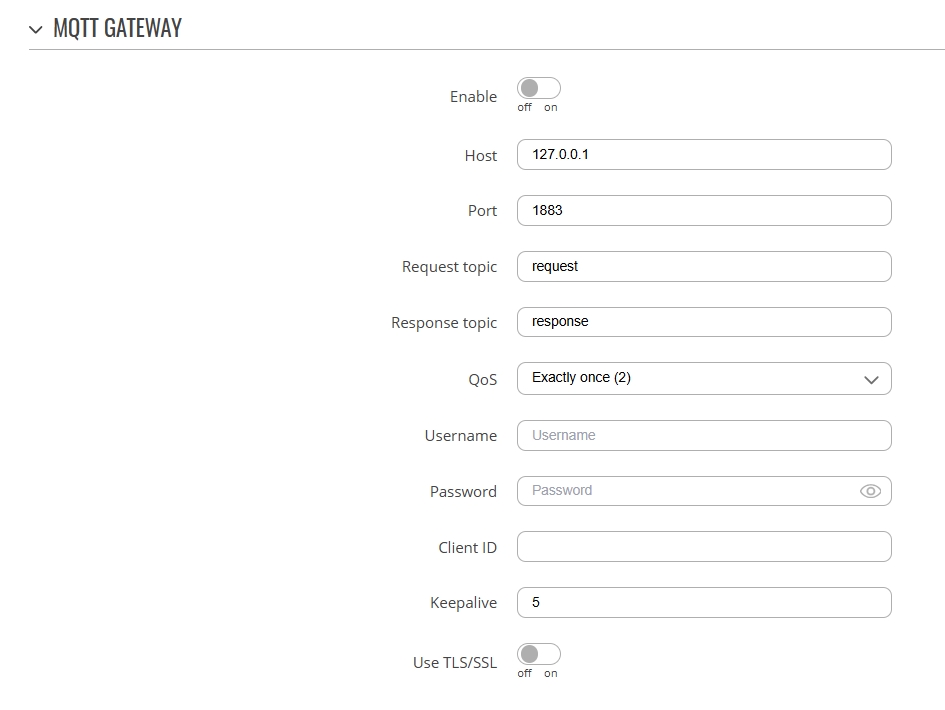

MODBUS, MQTT, SNMP, RMS, GRE, IPsec, PPTP, Wireguard, L2TP, SNMP
Name it and we can configure it. We support and can set up almost all commonly used protocols in the market, including MODBUS, MQTT, SNMP, RMS, GRE, IPsec, PPTP, WireGuard, L2TP, and many more.
Compatible With All Singapore LTE 4G SIM Card
Just insert any of your SIM Card with SMS plans. Either it’s Singtel, Starhub or M1, or any other MVNO Telcos
Interface
We offer nearly every type of interface to connect to your equipment. Some is direct Plug and Play (Zero Programming) to your device if comaptible with Modbus.
RS232 / Serial
Compatible with industrial DNP3 & Modbus communication protocols
RJ45 / LAN
Compatible with industrial DNP3 & Modbus communication protocols
Input / Output Connector
Compatible with industrial DNP3 & Modbus communication protocols
M-Bus Connector
Supporting up to 250 client devices
RS485 Serial Connector
Compatible with industrial DNP3 & Modbus communication protocols
Free Source Code
We offer a Free Windows Application along with Free Python Source Code for every purchase, enabling you to easily learn how to send SMS to each model
3 Times Exchange
We offer 3 different sets of 4G modems, each with its own merits, advantages, and disadvantages. When you purchase from us, we give you the flexibility to exchange for another set if the one you chose doesn’t suit your needs. You can exchange up to 3 times within a week, ensuring you find the best modem for your machine or application. The warranty remains the same: a 1-year warranty with a 1-to-1 exchange policy.
