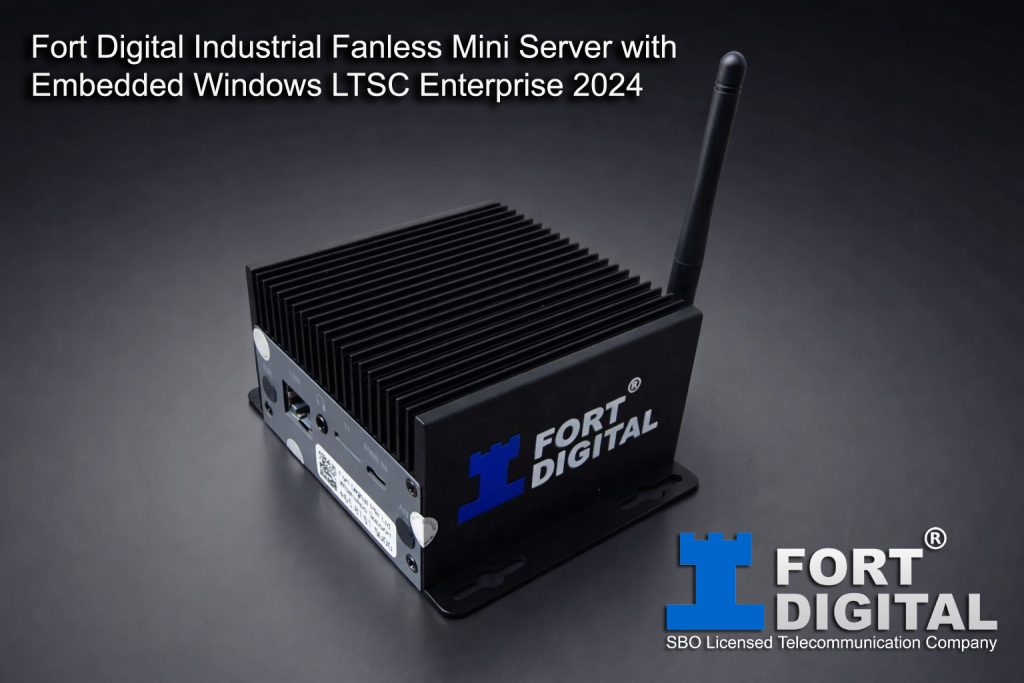

Industrial IoT Fanless Mini Server with Embedded Windows LTSC Enterprise 2024
Windows LTSC Enterprise 2024 (based on Windows 11) is designed for long-term, mission-critical deployments such as ATM machines, industrial robots, medical devices, kiosks, and factory equipment, where stability and predictability are more important than frequent feature updates.

It uses the same core Windows 11 kernel and security architecture but removes consumer-oriented components and bloatware found in standard Windows 11 installations, such as the Microsoft Store, preinstalled apps, gaming features, and background consumer services.
Palm Size Mini Server

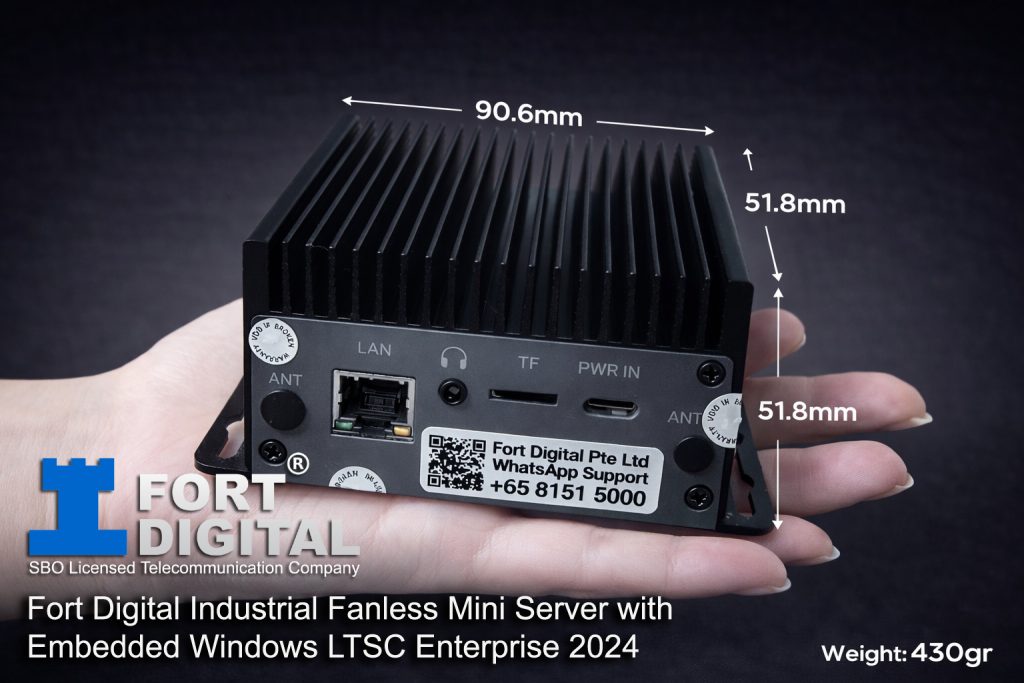

Despite its industrial-grade capabilities, the Fort Digital Industrial Fanless Mini Server features a compact, palm-sized design that comfortably fits in one hand, making it exceptionally easy to deploy in space-constrained environments. With dimensions of just 90.6 mm × 87.6 mm × 51.8 mm and a lightweight build of approximately 430 g, it can be discreetly installed inside kiosks, control cabinets, machines, or wall-mounted enclosures without requiring additional structural support. This small physical footprint allows for flexible installation while still delivering reliable, long-term performance for embedded and mission-critical applications.
24/7/365 Non Stop Operations

The system receives long-term security updates without disruptive feature changes, reducing downtime and maintenance risk. In this edition, only essential components are retained, with Microsoft Edge typically remaining as the default browser for web-based interfaces, resulting in a significantly lighter, faster, and more resource-efficient operating system compared to standard Windows 11, making it ideal to function as a compact, reliable “mini server” for dedicated hardware and embedded environments.
Specifications

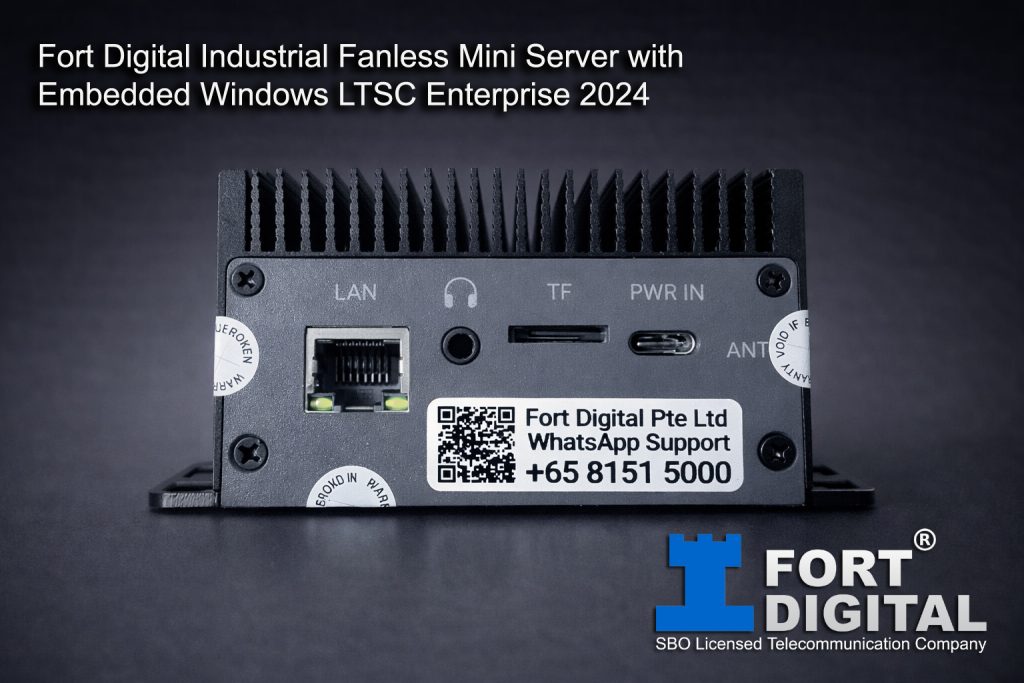

Windows LTSC Enterprise 2024 (based on Windows 11) Activated. Intel N150 processor (up to 3.6 GHz, 4 cores / 4 threads) + RP2040 Co-Processor, Onboard 8GB LPDDR5 memory, Supports IBECC (16GB Available), Onboard 64GB eMMC storage (128GB Available), Power: USB C, 6W to 15W Adaptor, Size : 90.6mm x 87.6mm x 51.8mm, Weight : 430gr. Internal Expansion: 1x GPIO Header, 1x M.2 E Key Slot, 1x I2C Touch Connector, 1x eDP Display Connector, 1x PCIe 3.0 x1 FPC Connector, 1x RTC Battery Connector, 1x PH2.0 4-Pin Connector(for power input), 1x Fan Port. External Ports: 3x USB 3.2 Gen 2 (10 Gbps) ports, 1x Gigabit Ethernet, 1x HDMI 2.1 and eDP dual video outputs, up to 4096 x 2160@60Hz, 1x TF Card Slot, 1x 3.5mm Microphone Headphone Combo Connector. Packaging: 1x Mini Server, 1x USB C Adaptor, 1x USB 2.4 GHz Wifi Adaptor.


No Bloatwares – Much Lighter

It uses the same core Windows 11 kernel and security architecture but removes consumer-oriented components and bloatware found in standard Windows 11 installations, such as the Microsoft Store, preinstalled apps, gaming features, and background consumer services.
Dual Processor Intel N150 +
RP2040 Co-Processor

Alongside the Intel N150 processor, it also integrates an RP2040 co-processor, which features a dual-core Arm Cortex-M0+, offers abundant GPIOs, and can be dedicated to real-time I/O control, sensor data acquisition, motor drive tasks, or even emulate a custom HID device. This design effectively reduces the load on the main processor and enhances system responsiveness and functional versatility.
Zero Fan Casing
The Aluminum Heatsink Case is a rugged, all-metal enclosure designed to provide superior passive cooling, silent operation, and long-term stability in demanding environments. By integrating the entire aluminum body as a large heatsink, it efficiently dissipates heat from the processor, preventing thermal throttling and supporting sustained performance without the need for a fan. Its high-quality aluminum alloy construction with a sandblasted, anodized finish offers strong physical protection against impact and wear, while precision cutouts ensure full access to all ports. The case also features versatile mounting options for desktop or wall installation, making it ideal for industrial, embedded, and continuous-operation applications where reliability, durability, and quiet performance are essential.

Warning: This enclosure uses a fully fanless design in which the entire aluminum casing functions as a heatsink. During heavy or continuous operation, the surface temperature of the case may rise to as high as 80 °C. This temperature level is normal and within safe operating limits for the device; however, the casing can become extremely hot to the touch. To avoid burns or skin injury, do not touch the enclosure with bare hands while the system is under load or immediately after extended operation. Allow the device to cool before handling.
Optional Windows + Apache Web Server +
MySQL + PHP (WAMP Stack)
It uses the same core Windows 11 kernel and security architecture but removes consumer-oriented components and bloatware found in standard Windows 11 installations, such as the Microsoft Store, preinstalled apps, gaming features, and background consumer services.

Optional Linux Distro O/S

Update us if you prefer Linux Distro OS instead of Windows LTSC Enterprise 2024
Cost
S$ 599
Warranty
The Fort Digital Industrial Fanless Mini Server comes with a 1-year limited warranty covering manufacturing defects under normal operating conditions. For warranty service, the unit must be brought to the Fort Digital office at Da Jin Factory Building #03-04, 362 Upper Paya Lebar Rd, Singapore 534963, strictly by appointment only. Please arrange an appointment in advance via WhatsApp at wa.me/6581515000. The warranty will be void if damage is caused by fire, electrical short circuit, water or liquid exposure, misuse, improper installation, unauthorized modifications, opening the casing for hardware expansion, or any other conditions outside normal intended use that compromise the integrity of the device.
